$359.95
$431.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

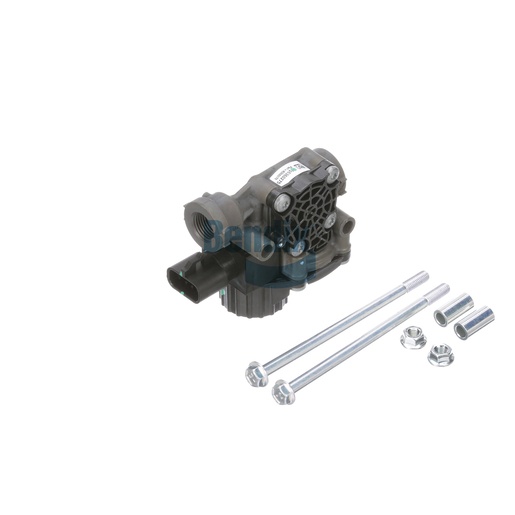

The ABS Modulator Valve is an essential component of your Bendix ABS and stability control system for trailers. This valve regulates brake pressure, improving vehicle stability and safety during various driving conditions. Engineered for optimal performance, it features a robust design that withstands the rigors of heavy-duty use, ensuring reliable operation mile after mile. The modulator valve is easy to install, promoting quick maintenance and reducing downtime. For purchasing genuine Bendix OEM parts, Source One Parts Center is the best choice, offering a wide selection of reliable components to enhance your vehicle's performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Dust Shield
Connector Type
Metri-Pack 280 Series 3-Way Sealed Connector (Male)
Country of Origin
Mexico
Modulator Type
QR (Quick Release)
Mounting
Ø .335 IN (2x)
Weight
1.96 lb
