$269.95
$323.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

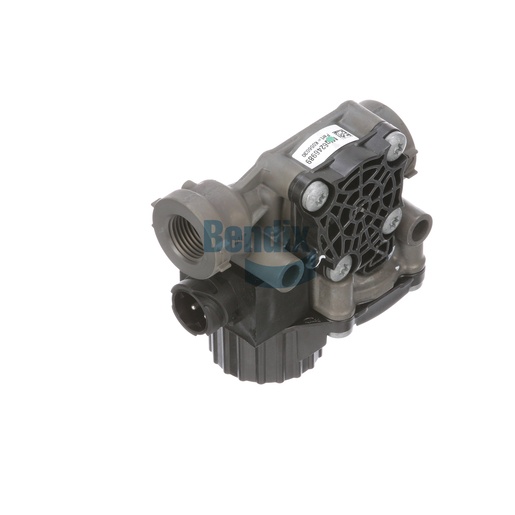

The Bendix ABS modulator valve is an essential component in maintaining optimal braking performance and stability for trailer systems. This advanced valve facilitates effective communication between the braking system and the vehicle's anti-lock features, ensuring that braking power is distributed evenly across wheels during sudden stops or adverse conditions. With a compact design, this modulator valve is engineered for quick installation and reliable operation, significantly enhancing the safety and efficiency of your trailer's braking system. The durable construction ensures it withstands the demands of heavy use, providing peace of mind for operators and drivers alike. For those seeking outstanding performance from their braking systems, Source One Parts Center offers genuine Bendix OEM parts that guarantee quality and reliability.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Exhaust Port
Dust Shield
Country of Origin
Mexico
Modulator Type
QR (Quick Release)
Mounting
Ø .335 IN (2x)
Weight
1.55 lb
