FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

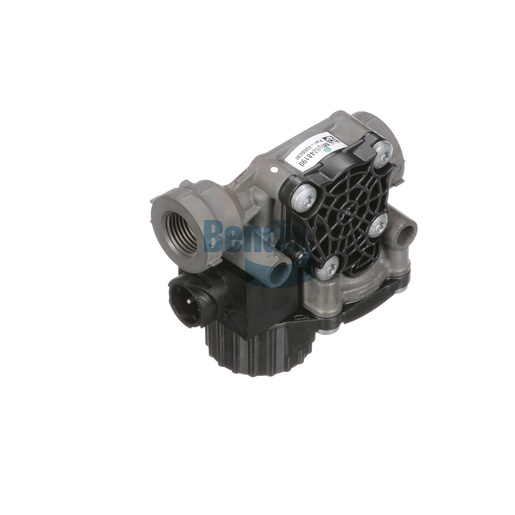

Discover the advanced technology of the Bendix ABS modulator valve, designed specifically for trailer applications. This essential component enhances your vehicle's braking system by providing precise control over braking pressure, ensuring optimal performance and safety while on the road. With a quick-release modulator type and durable construction, this valve is engineered to withstand the rigors of heavy-duty use. The compact design allows for easy installation and integration with existing systems, making it a perfect upgrade for fleet operators and individual truck drivers. Featuring a robust construction, it ensures reliable operation even in challenging conditions, maximizing your vehicle's braking effectiveness. Trust Source One Parts Center for your Bendix OEM parts, providing you with the quality and performance your commercial vehicle deserves.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Exhaust Port
Dust Shield
Country of Origin
Mexico
Modulator Type
QR (Quick Release)
Mounting
Ø .335 IN (2x)
Weight
1.54 lb
