$269.95
$323.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

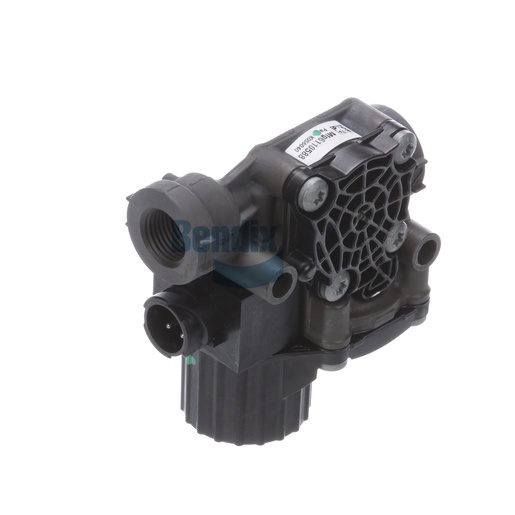

The Bendix ABS Modulator Valve is an essential component for maintaining the efficiency and safety of your trailer's braking system. Designed for high performance, this valve is engineered to manage the air flow within the ABS system, ensuring optimal braking response. Manufactured in Mexico, it features a robust construction that can withstand the harsh conditions typically encountered in commercial applications. The valve is designed to operate effectively at a maximum pressure of 150 PSI, providing superior modulation and control. By integrating this modulator valve into your braking system, you can enhance vehicle handling and stability, particularly during emergency braking situations. Source One Parts Center is the ideal choice for genuine Bendix parts, ensuring that you receive high-quality components that meet the demands of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2-14 NPT
Supply Port
1/2-14 NPT
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Connector Type
Circular DIN 3-Way Connector (ISO 15170-1 Twist-Lock)
Exhaust Port
Dust Shield
Modulator Type
HF (High Flow)
Country of Origin
Mexico
Mounting
Ø .335 IN (2x)
Weight
1.55 lb
