$369.95
$443.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

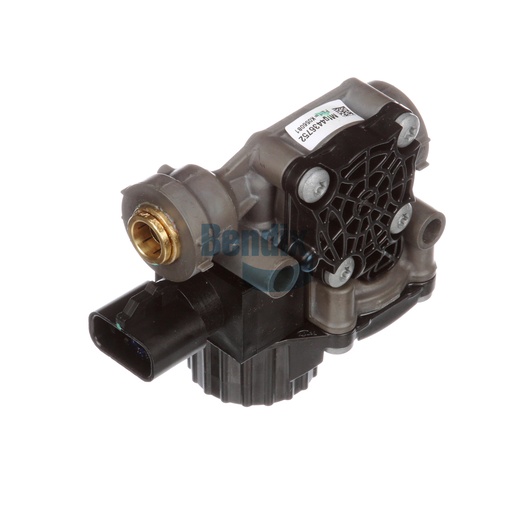

The ABS Modulator Valve is a vital component designed for trailers, significantly enhancing the anti-lock braking system's effectiveness. This valve features a quick-release modulator type, optimizing the response and performance of your braking system. With a compact design and a nominal current of 4.6 A, it ensures efficient operation under various conditions. Weighing only 0.7 kg, it integrates seamlessly into your existing setup. For the best in genuine Bendix OEM parts, Source One Parts Center is the leading choice, ensuring reliability and performance for all your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-071: Modulator Valve - Antilock Brakes
Delivery Port
1/2 PTC (Straight)
Supply Port
1/2 PTC (Straight)
Height
105.0 mm (4.13 in)
Length
110.0 mm (4.33 in)
Voltage (Nominal)
12 Volts
Duty Cycle
15 sec / 5 min
Maximum Operating Pressure
150 PSI
Maximum Solenoid "On" Time
150 sec
Maximum Operating Temperature
185 °F (85 °C)
Current (Nominal)
4.6 A
Width
61.0 mm (2.4 in)
Harmonized System (HS) Code
848120,847989
Exhaust Port
Dust Shield
Connector Type
Metri-Pack 280 Series 3-Way Sealed Connector (Male)
Country of Origin
Mexico
Modulator Type
QR (Quick Release)
Mounting
Ø .335 IN (2x)
Weight
1.65 lb
