$17.95
$21.54
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

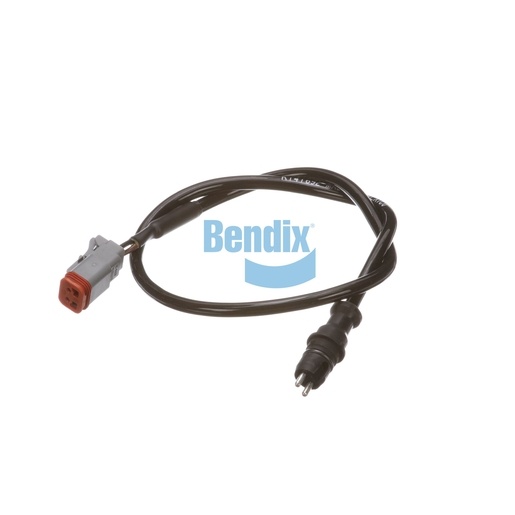

The Extension Cable from Bendix is designed to enhance the functionality of your wheel speed sensors, ensuring reliable communication with your vehicle's braking system. Engineered for durability, this cable is built to withstand the rigors of commercial use, providing a robust connection that is essential for optimal performance. With a length of 508 mm, it offers flexibility in installation while maintaining a secure fit. The cable's ingress protection rating of IP6K9K ensures it remains functional in various environmental conditions. When looking for genuine Bendix OEM parts, Source One Parts Center is the best option, providing quality components that enhance the performance and safety of your commercial vehicles.
SPECIFICATIONS
VMRS
013-011-004: Cable - Wheel To Controller - Sensor
Height
16.5 mm (0.65 in)
Width
16.8 mm (0.66 in)
Number of Wires
2
Harness Length
508.0
Length
508.0 mm (20.0 in)
Harmonized System (HS) Code
854430
Connector 1
Deutsch DT Series 2-Way Sealed Connector (Female)
Ingress Protection Rating
IP6K9K
Country of Origin
Mexico
Wire Protection Sleeve Included
No
Connector 2
Standard 2-Pin DIN Barrel Sealed Connector (Plug)
Application
Wheel Speed Sensor
Weight
0.19 lb
