801544

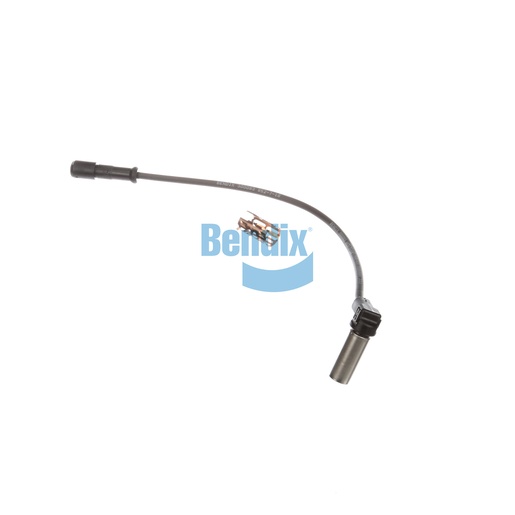

Wheel Speed Sensor
Bendix
DISCONTINUED
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Wheel Speed Sensor from Bendix is a vital component in the ABS and stability system of trailers, designed to monitor wheel speed and enhance braking performance. This sensor provides accurate data to the vehicle's braking system, facilitating optimal control and stability during operation. With a durable construction and an ingress protection rating of IPX9K, it is engineered to withstand harsh environmental conditions, ensuring reliable performance on the road. The sensor features a straight body type and comes equipped with a Deutsch DTM Series 2-way sealed connector, making installation straightforward and secure. Weighing only 0.2 kg, it is designed to integrate seamlessly into the existing braking system without adding unnecessary weight. For high-quality and genuine Bendix OEM parts, Source One Parts Center is your trusted source, delivering components that meet the highest standards.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.1 mm (4.02 in)
Length
228.6 mm (9.0 in)
Harness Length
319
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370,902920
Body Type
90°
Connector Type
DIN 2-Pin Barrel Sealed Connector (Socket)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Convoluted Tubing Included
No
Grommet Included
No
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.44 lb
