$124.95
$149.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

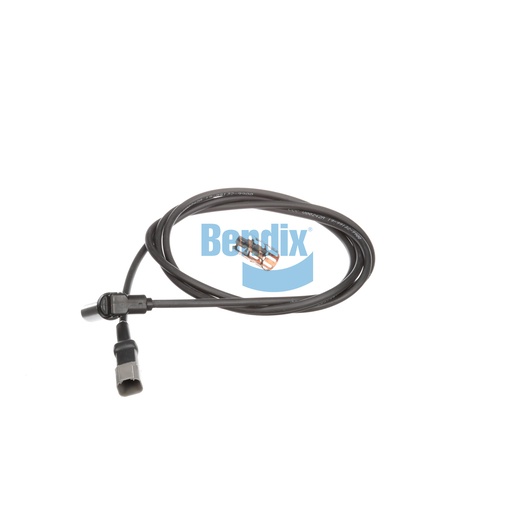

The Wheel Speed Sensor from Bendix is a critical component in the ABS and stability systems of trailers, designed to monitor wheel speed and enhance braking performance. This sensor is engineered for precision and reliability, ensuring accurate data transmission for optimal vehicle control. Featuring a robust design and constructed to withstand harsh environmental conditions, it is lightweight at just 0.3 kg, making installation straightforward and efficient. The sensor operates effectively in a wide temperature range, providing dependable performance under various conditions. Its compatibility with multiple vehicle models enhances its versatility, making it a preferred choice for fleet operators. For genuine Bendix parts, Source One Parts Center is the best destination, offering authentic OEM components and expert support.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.1 mm (4.02 in)
Harness Length
1905
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
848120,854370
Body Type
90°
Connector Type
Deutsch DT Series 2-Way Sealed Connector (Male)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Convoluted Tubing Included
No
Grommet Included
No
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.6 lb
