This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

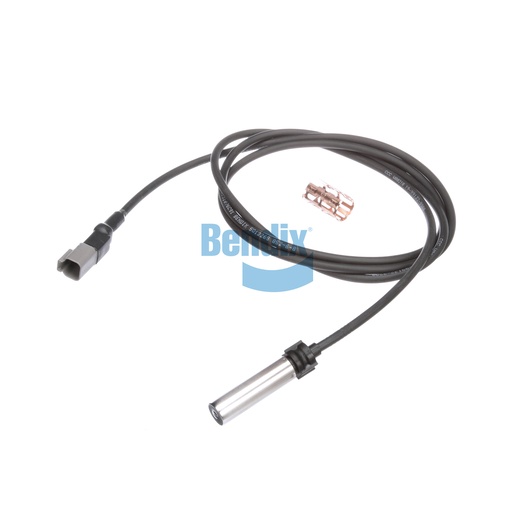

The Bendix Wheel Speed Sensor is an advanced component designed to provide precise data on wheel speed, crucial for enhancing the performance of antilock braking systems. This sensor ensures that your vehicle maintains optimal traction and stability, particularly during emergency braking situations. With an ingress protection rating of IPX9K, it is built to withstand harsh environmental conditions, ensuring reliable performance under various circumstances. The sensor is compatible with a variety of commercial vehicles, making it a versatile choice for fleet operators. Weighing only 0.3 kg, its compact design allows for easy installation while ensuring effective functionality. For the highest quality Bendix parts, Source One Parts Center is your trusted source for genuine OEM components that enhance the safety and reliability of your vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.1 mm (4.02 in)
Harness Length
1905
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370,903290
Connector Type
Deutsch DT Series 2-Way Sealed Connector (Male)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Convoluted Tubing Included
No
Grommet Included
No
Body Type
Straight
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.66 lb
