$124.95
$149.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

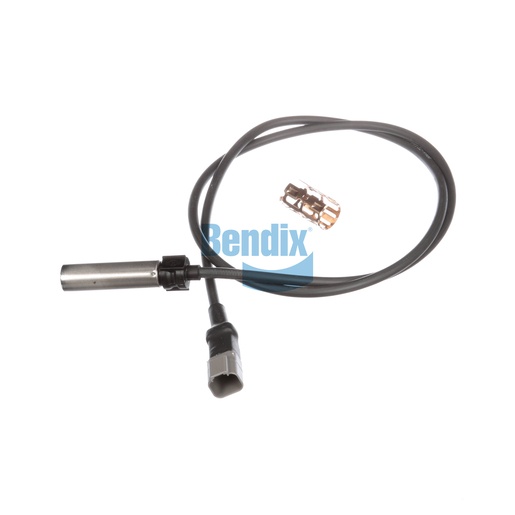

The Bendix wheel speed sensor is a critical component of the antilock braking system (ABS) for trailers, designed to monitor the rotational speed of the wheels and provide real-time feedback to the vehicle's braking system. This advanced sensor ensures that your braking system can adjust accordingly to maintain optimal stopping power and prevent wheel lock-up, enhancing safety during driving. With an ingress protection rating of IPX9K, this sensor is built to withstand harsh environmental conditions, ensuring durability and reliability. Weighing only 0.55 pounds, its compact design allows for easy installation in various trailer applications. By investing in a genuine Bendix wheel speed sensor, you are choosing a part that enhances the safety and performance of your vehicle. Source One Parts Center is the premier destination for all your Bendix OEM needs, ensuring you receive only the highest quality parts for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Harness Length
1016
Height
102.1 mm (4.02 in)
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Connector Type
Deutsch DT Series 2-Way Sealed Connector (Male)
Ingress Protection Rating
IPX9K
Country of Origin
Mexico
Grommet Included
No
Wire Protection Sleeve Included
No
Body Type
Straight
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.55 lb
