$66.95
$80.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

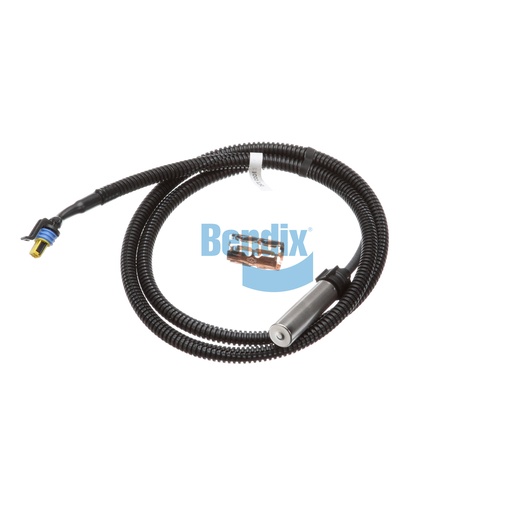

The Bendix Wheel Speed Sensor is a critical component in the anti-lock braking system (ABS) of commercial vehicles, providing real-time data on wheel rotation speed. This sensor enhances vehicle safety by preventing wheel lockup during braking, thereby improving control and stability on the road. Its robust design ensures durability and reliable performance, even in demanding conditions, making it an essential part of maintaining an effective braking system. With a simple installation process, the wheel speed sensor helps operators quickly restore the functionality of their ABS, ensuring optimal safety features are in place. When it comes to sourcing high-quality sensors, Source One Parts Center stands out as the premier destination for genuine Bendix OEM parts, ensuring you receive the best components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.1 mm (4.02 in)
Harness Length
1300
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Ingress Protection Rating
IPX9K
Connector Type
Metri-Pack GT 150 Series 2-Way Sealed Connector (Female)
Country of Origin
Mexico
Grommet Included
No
Body Type
Straight
Clamping Sleeve Included
Yes
Convoluted Tubing Included
Yes
Grease Included
Yes
Weight
0.6 lb
