$96.95
$116.34
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

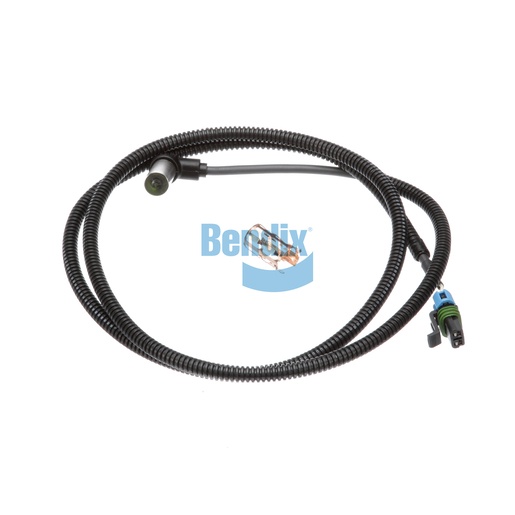

The Wheel Speed Sensor from Bendix is a crucial component for monitoring the speed of your vehicle's wheels, ensuring accurate data for the ABS and stability control systems. This sensor is designed to provide reliable readings, enhancing the overall safety and performance of your commercial vehicle. With a compact design and an ingress protection rating of IPX9K, it is built to withstand harsh environmental conditions. Weighing only 0.2 kg, it offers easy installation without compromising on durability. The sensor's ability to operate effectively within a temperature range of -40°F to 320°F ensures consistent performance across various driving conditions. For those looking for quality and reliability in braking components, Source One Parts Center is the best place to purchase genuine Bendix OEM parts.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.1 mm (4.02 in)
Harness Length
1584
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Body Type
90°
Ingress Protection Rating
IPX9K
Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Female)
Country of Origin
Mexico
Grommet Included
No
Clamping Sleeve Included
Yes
Convoluted Tubing Included
Yes
Grease Included
Yes
Weight
0.49 lb
