801562

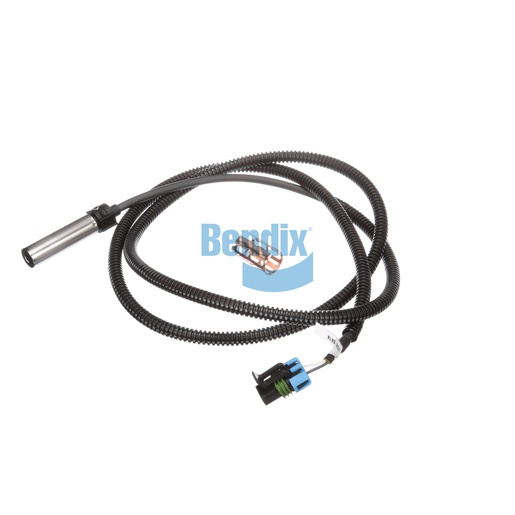

Wheel Speed Sensor
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$76.95
$92.34
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Wheel Speed Sensor is a vital component in maintaining the safety and efficiency of your trailer's anti-lock braking system. This sensor monitors the speed of the wheels, providing real-time data to the braking system to prevent wheel lockup during sudden stops. Designed to operate effectively in a wide range of temperatures, from -40°F to 320°F, this sensor is built to withstand harsh operating conditions. Its robust construction features an ingress protection rating of IPX9K, ensuring it remains functional even in wet and dirty environments. The sensor's straightforward installation process allows for easy integration into your existing system, making it a practical choice for truck operators looking to enhance safety. With Source One Parts Center, you can purchase genuine Bendix OEM parts that ensure your vehicle operates at its best.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.2 mm (4.02 in)
Harness Length
1584
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Ingress Protection Rating
IPX9K
Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Female)
Country of Origin
Mexico
Grommet Included
No
Body Type
Straight
Clamping Sleeve Included
Yes
Convoluted Tubing Included
Yes
Grease Included
Yes
Weight
0.64 lb
