$229.95
$275.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

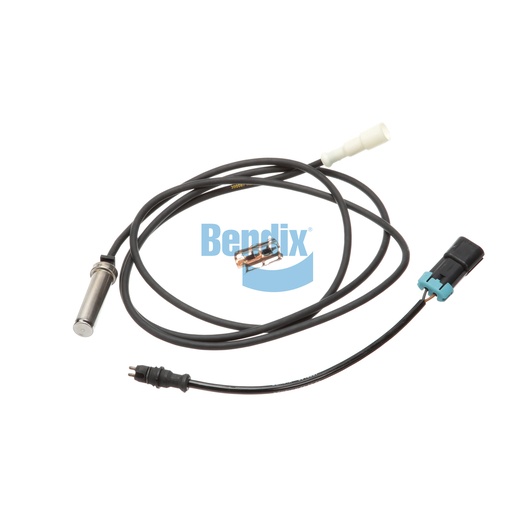

The Wheel Speed Sensor from Bendix is an essential component for ensuring optimal performance of your ABS and stability systems in trailers. This sensor is designed to provide accurate readings of wheel speed, which is crucial for effective braking and stability control, especially in adverse conditions. Constructed for durability, it operates efficiently within a temperature range of -40°F to 320°F, making it suitable for a wide variety of applications. The sensor comes with a sealed connector and features IPX9K ingress protection, ensuring reliability even in harsh environments. By choosing Source One Parts Center for your Bendix OEM parts, you can trust that you are investing in high-quality components that support the safety and performance of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Width
101.6 mm (4.0 in)
Height
102.2 mm (4.02 in)
Harness Length
1987
Length
228.6 mm (9.0 in)
Maximum Operating Temperature
320 °F (160 °C)
Harmonized System (HS) Code
854370
Connector Type
DIN 2-Pin Barrel Sealed Connector (Socket)
Ingress Protection Rating
IPX9K
Convoluted Tubing Included
No
Grommet Included
No
Body Type
Straight
Country of Origin
United States
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.88 lb
