$63.95
$76.74
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

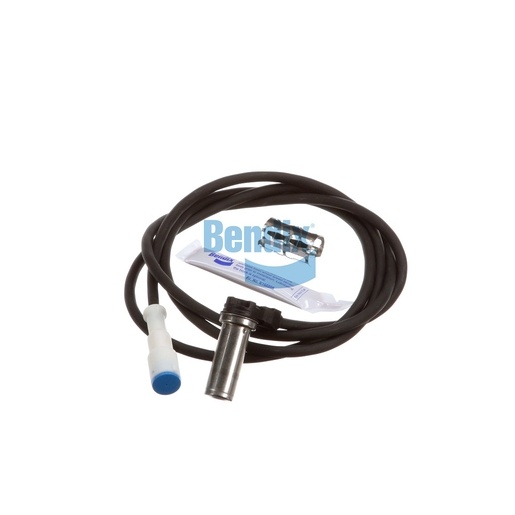

The Bendix Wheel Speed Sensor is crucial for the effective operation of ABS systems, providing accurate speed readings to enhance braking performance and stability. Designed for durability, this sensor can withstand the harsh conditions typical in commercial vehicle operations. With features that ensure precise data transmission, it plays a vital role in maintaining safety on the road. The straightforward installation process allows for quick upgrades or replacements, making it an essential part of your vehicle maintenance. For sourcing genuine Bendix parts, Source One Parts Center is your trusted provider of high-quality OEM components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Harness Length
1619
Length
1664.0 mm (65.51 in)
Maximum Operating Temperature
320 °F (160 °C)
Height
6.2 mm (0.24 in)
Width
6.2 mm (0.24 in)
Harmonized System (HS) Code
854370
Body Type
90°
Connector Type
DIN 2-Pin Barrel Sealed Connector (Socket)
Country of Origin
Germany
Ingress Protection Rating
IPX9K
Grommet Included
No
Wire Protection Sleeve Included
No
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.53 lb
