$71.95
$86.34
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

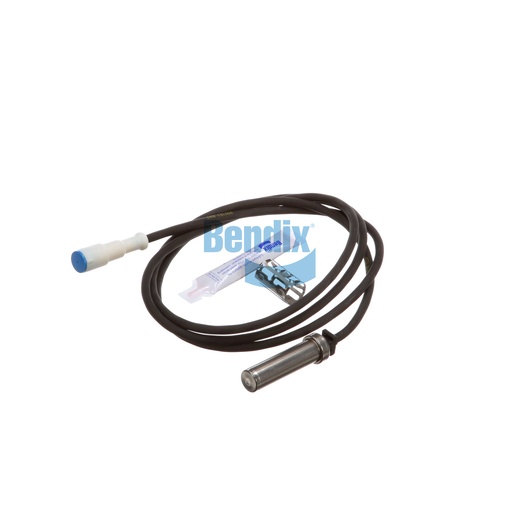

The Bendix Wheel Speed Sensor is an integral part of your truck's ABS and stability control systems, providing real-time data for enhanced vehicle safety. With a length of 1687 mm and a lightweight design of just 0.2 kg, this sensor is engineered for seamless integration and reliable performance. It accurately measures wheel speed, allowing the ABS system to optimize braking pressure and prevent wheel lockup during emergency stops. This sensor is vital for maintaining control and stability, especially when carrying heavy loads or navigating slippery surfaces. By ensuring that your truck has a functioning wheel speed sensor, you contribute to a safer driving experience, reducing the risk of accidents. Source One Parts Center is your trusted supplier for genuine Bendix OEM parts, guaranteeing that you receive high-quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-002: Sensor - Wheel Speed
Harness Length
1687
Length
1687.0 mm (66.42 in)
Maximum Operating Temperature
320 °F (160 °C)
Height
6.2 mm (0.24 in)
Width
6.2 mm (0.24 in)
Harmonized System (HS) Code
854370
Connector Type
DIN 2-Pin Barrel Sealed Connector (Socket)
Country of Origin
Germany
Ingress Protection Rating
IPX9K
Grommet Included
No
Wire Protection Sleeve Included
No
Body Type
Straight
Clamping Sleeve Included
Yes
Grease Included
Yes
Weight
0.44 lb
