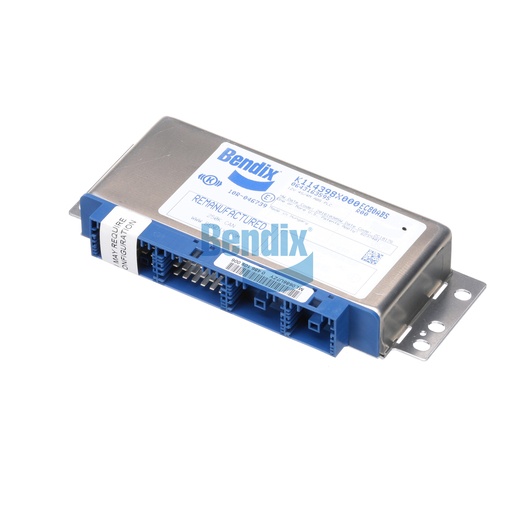

K114398N000
ABS ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS ECU is a critical component in Bendix’s Anti-lock Braking System (ABS), designed to enhance vehicle safety and control. This electronic control unit manages the braking system by preventing wheel lock-up during sudden stops, allowing for better steering control and shorter stopping distances. With a compact design and easy installation features, this ABS ECU is compatible with a wide range of commercial vehicles, making it a versatile choice for fleet operators. It is engineered to communicate effectively with wheel speed sensors and modulator valves, ensuring seamless operation under various driving conditions. By integrating this cutting-edge technology into your braking system, you enhance the safety and efficiency of your vehicle, reducing the risk of accidents. For the highest quality genuine Bendix OEM parts, Source One Parts Center is your go-to source, providing products that support the safety and performance of your fleet.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
ROM Version
1
Input Voltage
12 VDC
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
Width
88.3 mm (3.48 in)
ECU Type
Anti-lock Braking System (Standard)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
0.55 lb
