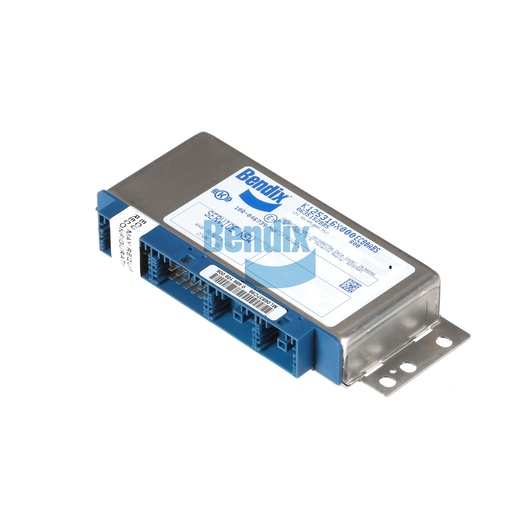

K125316SC000
ABS ECU
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The ABS ECU is an advanced electronic control unit designed for anti-lock braking systems in commercial vehicles. This unit plays a critical role in improving vehicle safety by preventing wheel lock-up during braking, especially in slippery conditions. With a compact design, it integrates seamlessly into your vehicle's braking system, providing real-time data processing to optimize brake performance. The ECU's multiple connectors enhance compatibility with various systems, making installation straightforward and efficient. It is engineered to meet rigorous safety standards, ensuring reliability and performance. By equipping your vehicle with this ABS ECU, you are investing in enhanced safety and control. Source One Parts Center is your premier source for genuine Bendix OEM parts, guaranteeing quality and dependability for your fleet.
SPECIFICATIONS
VMRS
013-011-076: Electronic Control Unit (ECU) - Antilock Brakes
ROM Version
1
Input Voltage
12 VDC
Length
200.0 mm (7.87 in)
CAN Baud Rate
250 Kilobaud
Height
33.7 mm (1.33 in)
ABS Modulator Valves
4
Wheel Speed Sensors
4
Mounting
6.5 MM x 9.5 MM Slot (4x)
Harmonized System (HS) Code
854370
Width
88.3 mm (3.48 in)
ECU Type
Anti-lock Braking System (Standard)
Mounting Location
Cab Mount
Country of Origin
Hungary
Connector X1
Mates with AMP Connector 1718091-1 (17-Pin / Black)
Connector X2
Mates with AMP Connector 8-968974-1 (18-Pin / Gray)
ECU Replacement Step 1
Use equivalent Bendix ECU to ensure standard default settings.
Weight
0.78 lb
