DESCRIPTION

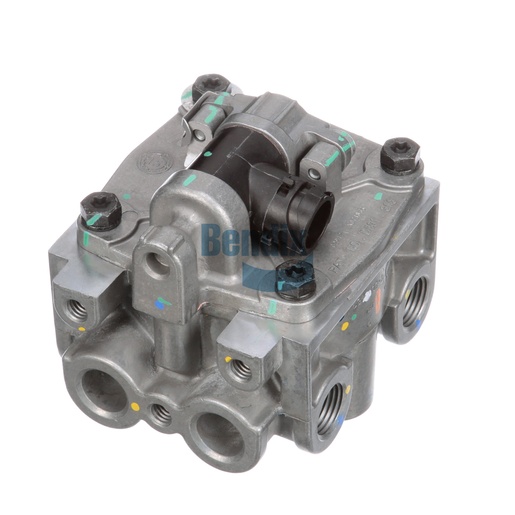

The Bendix Traction Relay is a critical component designed to optimize vehicle traction and stability, particularly in challenging driving conditions. With a thoughtful design featuring multiple delivery ports and a robust body configuration, this relay facilitates efficient air management. Its reliable performance is ensured with a crack pressure setting of 5.5 PSI, optimized for consistent functionality. The relay's compact dimensions allow for easy installation, while its durable construction withstands harsh environments, ensuring longevity. For all your genuine Bendix OEM parts, Source One Parts Center is the best source, providing quality components that enhance your vehicle's performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control Port
1/4-18 NPT
Width
102.0 mm (4.02 in)
Length
117.0 mm (4.61 in)
Voltage (Nominal)
12 Volts
Height
120.0 mm (4.72 in)
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
185 °F (85 °C)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Mounting
3/8-16 UNC-2B (3x)
Crack Pressure
5.5 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Closed Port
Delivery Port 6
Closed Port
Delivery Port 7
Closed Port
Delivery Port 8
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV055
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.08 lb
