$359.95
$431.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

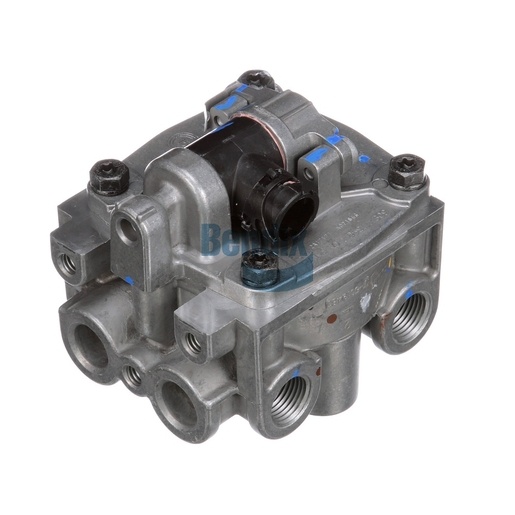

The Bendix Traction Relay is a sophisticated component of the anti-lock braking system, specifically designed to enhance traction and stability in commercial vehicles. This relay operates by controlling the distribution of air pressure to the brakes, allowing for precise adjustments that prevent wheel slippage during acceleration. Weighing 1.4 kg, this durable relay is engineered for heavy-duty applications, ensuring it can withstand the rigors of daily use. Manufactured in Mexico, the traction relay adheres to Bendix's stringent quality standards, guaranteeing reliability you can count on. Its innovative design allows for quick response times, significantly improving vehicle handling and safety, particularly in adverse conditions. By investing in this traction relay, fleet operators can enhance their vehicles' overall performance and reliability. Source One Parts Center is the best choice for sourcing genuine Bendix OEM parts, providing a wide array of high-quality components for commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-011-150: Valve - Traction Relay (TRV)
Control Port Orientation (CW from Front Face)
0°
Body Configuration
1 SUP / 8 DEL (6H + 2V)
Delivery Port 1
1/2-14 NPT
Delivery Port 2
1/2-14 NPT
Delivery Port 3
1/2-14 NPT
Delivery Port 4
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Control Port
1/4-18 NPT
Voltage (Nominal)
12 Volts
Mounting Orientation (CW from Front Face)
180°
Maximum Operating Temperature
185 °F (85 °C)
Connector Type
2-Way Circular DIN (ISO 15170-1 Twist-Lock)
Mounting
3/8-16 UNC-2B (3x)
Crack Pressure
4.0 PSI
Harmonized System (HS) Code
848120
Delivery Port 5
Closed Port
Delivery Port 6
Closed Port
Delivery Port 7
Closed Port
Delivery Port 8
Closed Port
Exhaust Port
Dust Shield
Country of Origin
Mexico
TMC Washer
RV040
Cautionary Note(s)
Use caution when positioning solenoid connector.
Internal Supply Passage to Cover
Yes
Weight
3.07 lb
