K096786

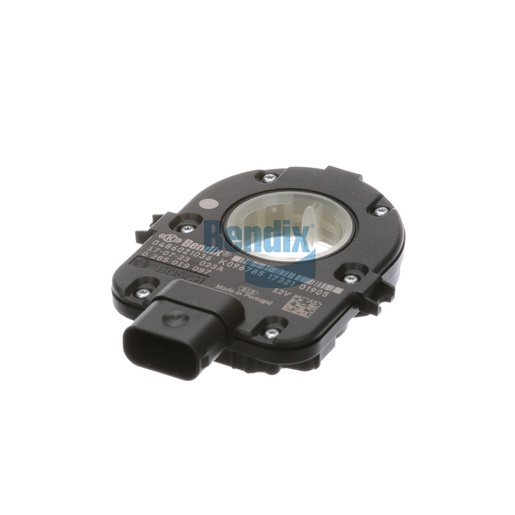

Steering Angle Sensor
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Steering Angle Sensor from Bendix is a sophisticated component designed to enhance vehicle safety and performance by providing accurate steering angle data. Manufactured in Portugal, this sensor is built to high standards, ensuring reliability and durability in various driving conditions. It features advanced technology, including a Bosch 7-Pin Connector and an operating voltage range of 8 VDC - 16 VDC, making it compatible with a wide range of commercial vehicles. This sensor plays a vital role in stability control systems, helping prevent accidents and improve handling. For those seeking top-quality Bendix OEM parts, Source One Parts Center is the premier option for authentic, reliable components.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
015-002-029: Sensor - Steering Wheel Angle
Current (Maximum)
150 mA
Overvoltage
18 Volts
Maximum Operating Temperature
185 °F (85 °C)
Length
21.5 mm (0.85 in)
CAN Baud Rate
500 Kilobaud
Width
72.0 mm (2.83 in)
Operating Voltage Range
8 VDC - 16 VDC
Height
85.0 mm (3.35 in)
Harmonized System (HS) Code
854370
Connector Type
Bosch 7-Pin Connector (Male)
Cautionary Note(s)
Fastener Torque & Orientation are Critical
Ingress Protection Rating
IP50
Country of Origin
Portugal
Connector Orientation
Straight
Steering Column Shaft Diameter
Ø 24.90 mm
Weight
0.15 lb
