802990

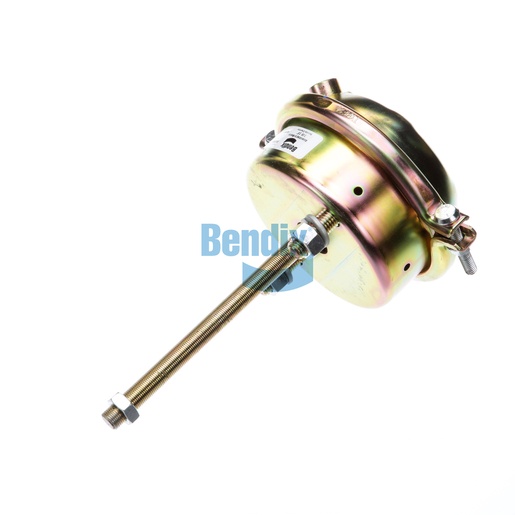

Brake Chamber (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Brake Chamber (S-Cam) is a critical component in the foundation drum brake system, providing reliable and effective braking power for commercial vehicles. Designed for durability and performance, this service chamber features a robust construction that ensures long-lasting operation under heavy loads. With a user-friendly design that simplifies installation, this brake chamber is compatible with various vehicle systems, making it an ideal choice for fleet operators seeking efficiency. Its proven reliability helps to enhance overall safety and performance, ensuring that your braking system operates smoothly. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you receive the highest quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-034: Chamber Assembly - Service Brake
Mounting Stud Length
1.47 IN (37.3 MM)
Length
145.0 mm (5.71 in)
Maximum Operating Temperature
175 °F (79 °C)
Stroke
2.50 IN (63.5 MM)
Height
218.0 mm (8.58 in)
Width
218.0 mm (8.58 in)
Port Angle
270°
Service Port (11) - Side
3/8-18 NPT
Service Port (11) - Center
3/8-18 NPT (Plugged)
Stud Spacing
4.75 IN (120.7 MM)
Clamp Angle
45°
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
8.20
Harmonized System (HS) Code
841231
Service Chamber Joint Type
Double Clamp Band
Country of Origin
Mexico
Weatherproof
No
Clevis / Yoke Style
Not Included
Chamber Type / Size
T20
Weight
8.82 lb
