K149714SC

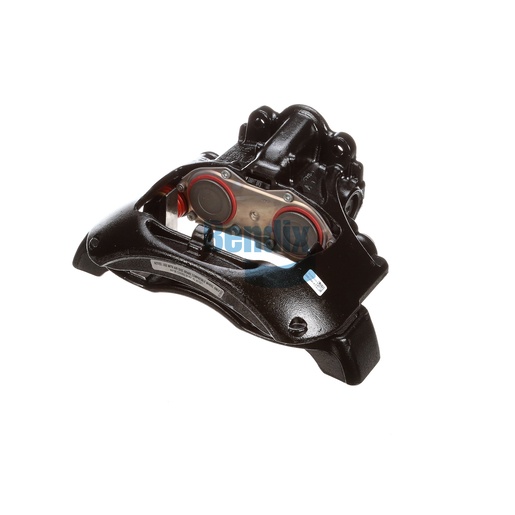

Caliper with Carrier
Bendix
AVAILABLE
More than 10 are currently available
Ships within 16-18 business days
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Caliper with Carrier is a vital component of the air disc braking system, designed to deliver superior stopping power and reliability for commercial vehicles. Featuring a closed guidance system and two pistons, this caliper ensures consistent pressure application for maximum braking efficiency. Its advanced adjustment mechanism enhances performance, while the precise chamber mounting angle allows for optimal positioning. Built to withstand high temperatures and heavy loads, this caliper is engineered for durability in the most demanding conditions. With a net weight of 27.7 kg, it combines robust construction with ease of installation, making it an essential part of your vehicle’s braking system. Source One Parts Center is your go-to provider for genuine Bendix OEM parts, ensuring you have access to top-quality components tailored for commercial applications.
SPECIFICATIONS
VMRS
013-013-001: Caliper - Air Disc Brake
Chamber Mounting Angle
0°
Number of Pistons
2
Height
271.0 mm (10.67 in)
Width
331.0 mm (13.03 in)
Length
447.0 mm (17.6 in)
Harmonized System (HS) Code
870830
Brake Orientation
A
Guidance System
Closed
Adjustment Mechanism
N2G
Country of Origin
United States
Weight
61 lb
