$214.95
$257.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

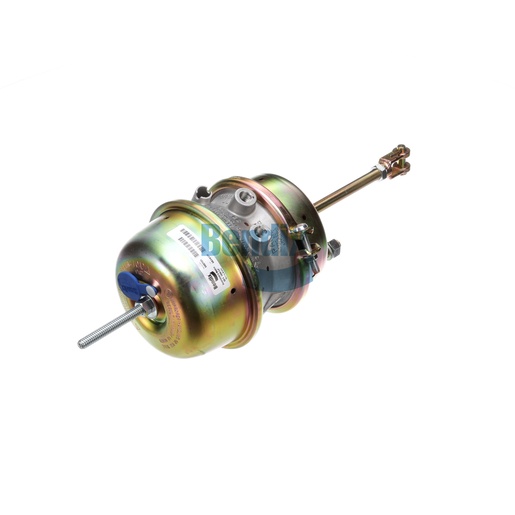

The Bendix Spring Brake (S-Cam) is engineered for high-performance braking in air disc brake systems. With a net weight of 9.4 kg, this chamber provides exceptional stopping power while ensuring reliability and ease of maintenance. Its double diaphragm design enhances performance under various conditions, making it suitable for heavy-duty applications. The careful engineering and quality materials used in its construction ensure longevity and optimal performance, giving fleet operators peace of mind. Source One Parts Center is the best choice for sourcing genuine Bendix OEM parts, ensuring that your vehicles remain safe and efficient.
SPECIFICATIONS
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Height
234.0 mm (9.21 in)
Width
234.0 mm (9.21 in)
Length
243.0 mm (9.57 in)
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T24/30
Weight
20.72 lb
