$174.95
$209.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

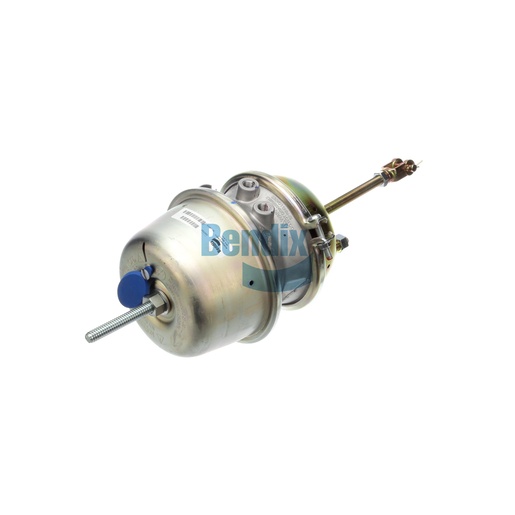

The Spring Brake (S-Cam) from Bendix is an essential component designed to provide reliable braking in heavy-duty applications. This chamber utilizes double diaphragm technology to ensure effective brake operation, offering superior performance under varying load conditions. With a robust design and constructed to endure harsh environments, it is engineered for a maximum operating temperature of 200°F. This spring brake is crucial for maintaining optimal brake pressure, enhancing safety and control during operation. Weighing 28.44 lbs, its design allows for easy installation and integration into existing systems. The spring brake chamber is vital for ensuring your vehicle meets safety regulations and performs reliably on the road. Source One Parts Center is your trusted source for genuine Bendix OEM parts, ensuring you receive components that support your vehicle's performance and safety.
SPECIFICATIONS
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Width
232.0 mm (9.13 in)
Length
261.0 mm (10.28 in)
Height
648.0 mm (25.51 in)
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/36
Weight
28.44 lb
