5010402

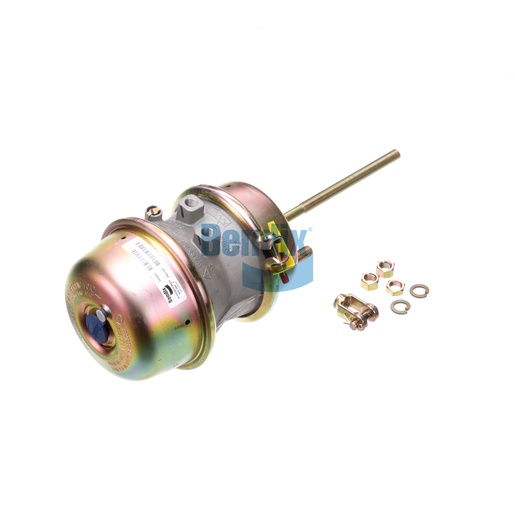

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Spring Brake (S-Cam) is an essential part of your vehicle's air disc braking system, providing reliable performance and safety. This chamber is designed to work efficiently under high-pressure conditions, ensuring that your truck's braking system responds effectively when needed. With a net weight of 10.2 kg, it features a double diaphragm design that enhances durability and performance. This spring brake chamber ensures consistent braking performance, contributing to overall vehicle safety and control. By using genuine Bendix OEM parts, you can trust in the quality and reliability that comes with this essential braking component. Source One Parts Center is your go-to source for authentic Bendix parts, ensuring you get the best for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Height
234.0 mm (9.21 in)
Width
234.0 mm (9.21 in)
Length
264.0 mm (10.39 in)
Port Angle
270°
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Clamp Angle
45°
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
9.05
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Brand
SB-4
Chamber Type / Size
T24/30
Clevis / Yoke Style
Threaded (Standard)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
22.49 lb
