800832

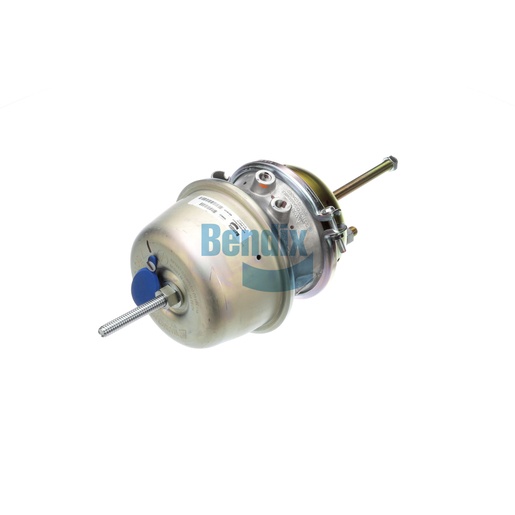

Spring Brake (S-Cam)
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (S-Cam) is a vital component in the air brake system, designed to provide reliable braking performance for heavy-duty commercial vehicles. With a double diaphragm chamber style, this spring brake ensures effective actuation and secure holding power, crucial for safe operation. It is engineered to perform well under various conditions, with a temperature range that allows operation from -40°F to 176°F. The unit's robust construction guarantees durability, while its design minimizes maintenance requirements, making it an ideal choice for fleet operators prioritizing efficiency. By investing in quality spring brakes, you enhance the safety and reliability of your vehicle's braking system. Source One Parts Center is the best place to purchase genuine Bendix OEM parts, ensuring you receive top-quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Length
260.0 mm (10.24 in)
Width
260.0 mm (10.24 in)
Height
424.0 mm (16.69 in)
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/36
Weight
27.78 lb
