K093672

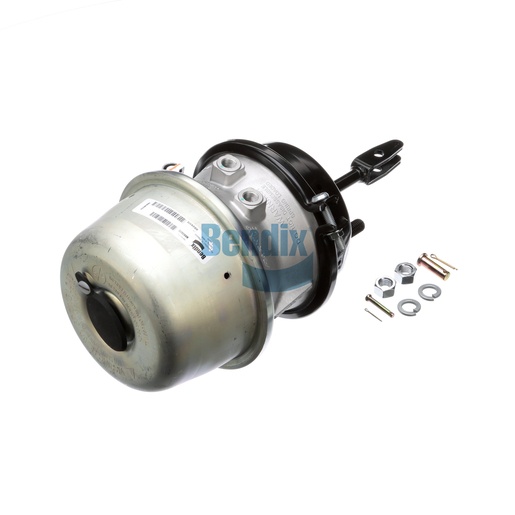

Spring Brake (S-Cam)
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$169.95
$203.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (S-Cam) is a crucial component for the air disc brake system in commercial vehicles, designed to enhance braking efficiency and safety. Manufactured in Mexico, this spring brake features a robust double diaphragm design that ensures reliable performance in demanding conditions. With a maximum operating temperature of 175 °F and a minimum of -40 °F, it is engineered for versatility across various operational environments. The unique clamp angle and stud spacing facilitate easy installation and compatibility with a wide range of vehicles. Weighing 13.4 kg, this component provides the necessary strength and reliability required for heavy-duty applications. When looking for genuine Bendix OEM parts, Source One Parts Center is your best resource, ensuring you receive high-quality components tailored for your commercial trucks.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Clevis / Yoke Pin Spacing
1.30 IN (33 MM)
Mounting Stud Length
1.50 IN (38.1 MM)
Maximum Operating Temperature
175 °F (79 °C)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
2.25
Height
260.5 mm (10.26 in)
Width
260.5 mm (10.26 in)
Port Angle
270°
Length
278.0 mm (10.94 in)
Stroke
3.00 IN (76 MM)
Parking Port (12)
3/8-18 NPT
Service Port (11)
3/8-18 NPT
Stud Spacing
4.75 IN (120.7 MM)
Clamp Angle
45°
Stud Thread Size
5/8-11 UNC-2A
Push Rod Thread / Style
5/8-18 UNF-2A
Harmonized System (HS) Code
841231
Brand
DiPro
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/36
Clevis / Yoke Style
Welded
Clevis / Yoke Arm Link Pin Diameter
Ø .25 IN (Ø 6.35 MM)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
29.54 lb
