This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

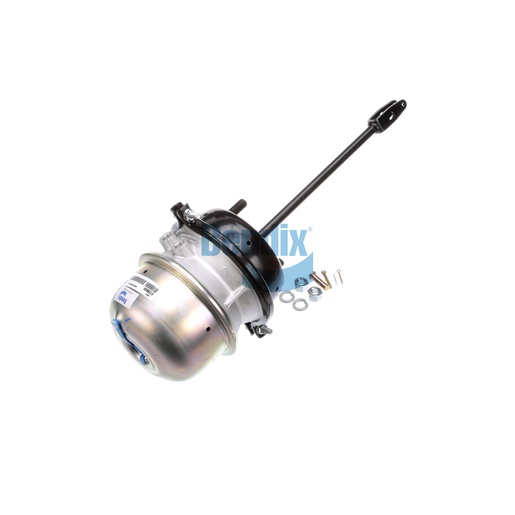

The Spring Brake (S-Cam) by Bendix is engineered to enhance the performance of air disc brakes in commercial vehicles. This chamber features a double diaphragm design, providing reliable spring brake functionality while ensuring optimal stopping power. With a stroke of 2.50 inches, it is designed to accommodate various braking applications, making it versatile for different vehicle types. Constructed for durability, this spring brake operates effectively in temperatures ranging from -40°F to 175°F, ensuring reliable performance in a range of conditions. Weighing 9.4 kg, it is engineered to provide a robust solution without adding unnecessary bulk to your braking system. The design allows for easy installation and maintenance, making it a practical choice for fleet operators who prioritize uptime and efficiency. When it comes to sourcing high-quality components, Source One Parts Center is your go-to for genuine Bendix OEM parts, ensuring you receive the best for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Port Angle
0°
Clevis / Yoke Pin Spacing
1.30 IN (33 MM)
Mounting Stud Length
1.50 IN (38.1 MM)
Push Rod Length (to Yoke Pin Center when Applicable) [IN]
11.10
Maximum Operating Temperature
175 °F (79 °C)
Clamp Angle
180°
Stroke
2.50 IN (63.5 MM)
Height
260.5 mm (10.26 in)
Width
260.5 mm (10.26 in)
Length
270.0 mm (10.63 in)
Parking Port (12)
3/8-18 NPTF
Service Port (11)
3/8-18 NPTF
Stud Spacing
4.75 IN (120.7 MM)
Stud Thread Size
5/8-11 UNC-2A
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Service Chamber Joint Type
Double Clamp Band
Chamber Style
Double Diaphragm
Brand
EnduraSure
Country of Origin
Mexico
Chamber Type / Size
T30/30
Clevis / Yoke Style
Welded
Clevis / Yoke Arm Link Pin Diameter
Ø .25 IN (Ø 6.35 MM)
Clevis / Yoke Arm Bushing Pin Diameter
Ø .50 IN (Ø 12.7 MM)
Weight
20.72 lb
