K139892

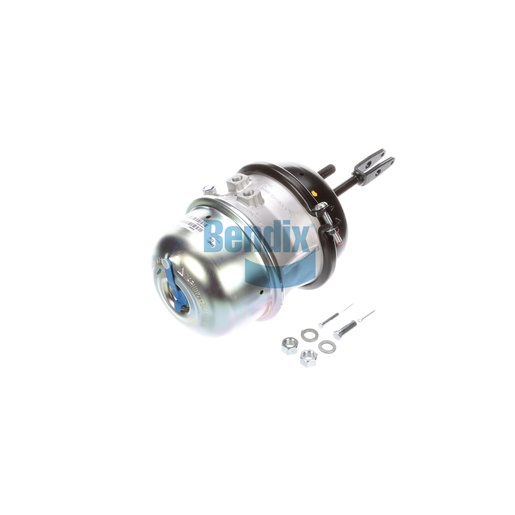

Spring Brake (S-Cam)
Bendix
IN STOCK
More than 10 are currently available
Ships within 1 business day
$104.95
$125.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Spring Brake (S-Cam) from Bendix is designed for reliable performance in heavy-duty applications. This double diaphragm chamber ensures optimal braking force and responsiveness, making it an essential component for your vehicle's air disc brake system. With a stroke of 3.00 inches, it provides the necessary force to engage and disengage the brakes efficiently, enhancing safety and control. The robust construction and quality materials used in manufacturing ensure long-lasting durability, reducing the frequency of replacements. Weighing 9.5 kg, this spring brake is designed for easy installation and maintenance. For sourcing genuine Bendix OEM parts, Source One Parts Center is your ideal destination, providing top-quality components for your commercial vehicles.
SPECIFICATIONS
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Height
260.5 mm (10.26 in)
Width
260.5 mm (10.26 in)
Length
270.0 mm (10.63 in)
Stroke
3.00 IN (76 MM)
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/30
Weight
20.96 lb
