$189.95
$227.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

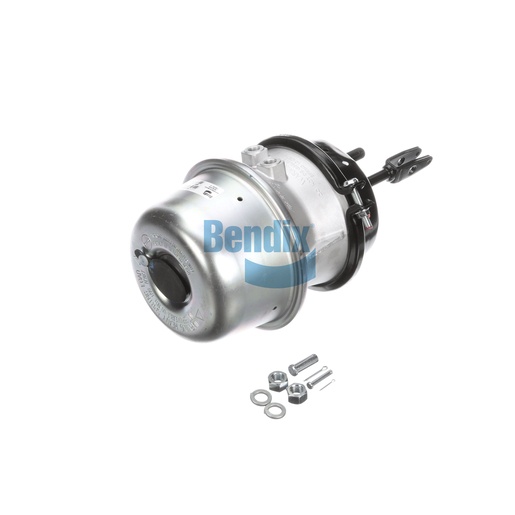

Ensure reliable braking performance with this Spring Brake (S-Cam), designed specifically for air disc brake systems. This essential component features a double diaphragm chamber style, providing efficient braking force and quick response times, crucial for heavy-duty applications. With a stroke of 3.00 inches, it is engineered to meet the rigorous demands of commercial vehicles while maintaining optimal safety. Weighing 12.5 kg and measuring 265mm in width, 490mm in height, and 265mm in length, it is built for durability and reliability on the road. Source One Parts Center is your trusted provider for genuine Bendix OEM parts, ensuring you maintain the highest standards of safety and performance.
SPECIFICATIONS
VMRS
013-004-027: Chamber Assembly - Spring & Service Brake
Length
265.0 mm (10.43 in)
Width
265.0 mm (10.43 in)
Stroke
3.00 IN (76 MM)
Height
490.0 mm (19.29 in)
Harmonized System (HS) Code
841231
Cautionary Note(s)
Do not disassemble while park side is caged under pressure
Chamber Style
Double Diaphragm
Country of Origin
Mexico
Chamber Type / Size
T30/36
Weight
27.49 lb
