DESCRIPTION

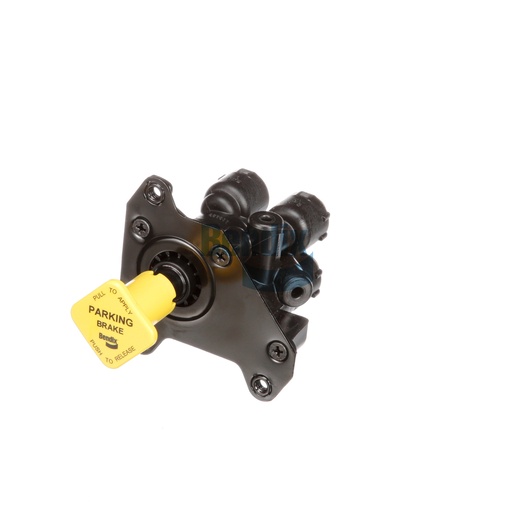

The Dash Valve is an integral part of the braking system, ensuring efficient air distribution and control in commercial vehicles. Weighing only 0.5 kg, this valve is designed for easy integration and optimal performance in the air brake system. With a maximum operating temperature of 200 °F and compliance with HS code 848120, this component meets industry standards for reliability and safety. Its multiple ports allow for effective management of air supply, ensuring that brakes engage smoothly and reliably. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your top choice, providing quality components that enhance the performance of your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Mounting
1/4-20 UNC-2B (3x)
Length
131.3 mm (5.17 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery 21 Port
3/8 PTC
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC
Supply 12 Port
3/8 PTC
Tractor Trip Pressure
35 ± 5 PSI
Harmonized System (HS) Code
848120
Height
91.9 mm (3.62 in)
Width
93.5 mm (3.68 in)
Country of Origin
Mexico
Button(s) Included
Yes
Weight
1.01 lb
