$279.95
$335.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

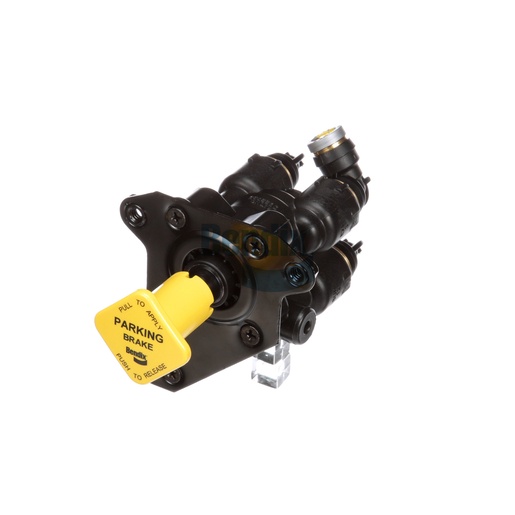

The Dash Valve is a crucial element within your air disc brake system, facilitating effective control and operation of your vehicle's air brakes. This component is designed to manage air flow efficiently, ensuring that your braking system operates smoothly and reliably under various driving conditions. With its robust construction, the Dash Valve is built to endure the demands of heavy-duty applications, making it an essential part for maintaining optimal braking performance. Its design allows for quick installation, minimizing downtime for fleet operators and ensuring that your vehicle remains operational. By investing in this Dash Valve, you enhance the responsiveness and effectiveness of your braking system, contributing to overall vehicle safety. At Source One Parts Center, you can find the best selection of genuine Bendix OEM parts, ensuring you receive high-quality components tailored to your commercial vehicle needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-049: Parking Valve - Tractor
Mounting
1/4-20 UNC-2B (3x)
Height
151.1 mm (5.95 in)
Maximum Operating Temperature
200 °F (93 °C)
Delivery 21 Port
3/8 PTC (90° Elbow / Composite / Black Cap)
Exhaust Port
3/8 PTC (90° Elbow / Composite / Gray Cap)
Supply 11 Port
3/8 PTC (90° Elbow / Composite / Green Cap)
Supply 12 Port
3/8 PTC (90° Elbow / Composite / Red Cap)
Tractor Trip Pressure
35 ± 5 PSI
Harmonized System (HS) Code
848120
Width
92.0 mm (3.62 in)
Length
93.5 mm (3.68 in)
Country of Origin
Mexico
Button(s) Included
Yes
Weight
1.13 lb
