$359.95
$431.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

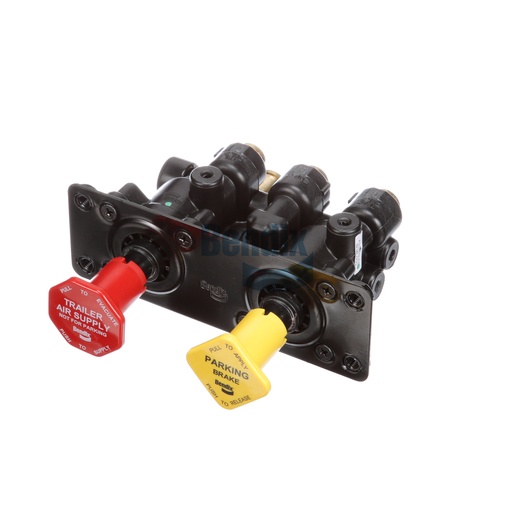

The Dash Valve is an important component in air disc brake systems, designed to optimize braking performance and enhance vehicle safety. This valve features multiple ports for efficient air supply and exhaust, allowing for precise control of braking functions. With a maximum operating temperature of 200°F and a robust construction, it is built to withstand the rigors of commercial vehicle operations. Its compact design facilitates easy installation and integration with existing systems, making it a practical choice for fleet managers. For the best genuine Bendix OEM parts, Source One Parts Center is your go-to supplier, ensuring that your vehicles are equipped with high-quality components that perform reliably under pressure.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Length
153.9 mm (6.06 in)
Width
165.1 mm (6.5 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Delivery 21 Port
3/8 PTC
Delivery 22 Port
3/8 PTC
Exhaust Port
3/8 PTC
Supply 11 Port
3/8 PTC
Supply 12 Port
3/8 PTC
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Height
65.3 mm (2.57 in)
Harmonized System (HS) Code
848120
Mounting
M6 x 1-6H (4x)
Country of Origin
Mexico
Button(s) Included
Yes
Weight
1.6 lb
