DESCRIPTION

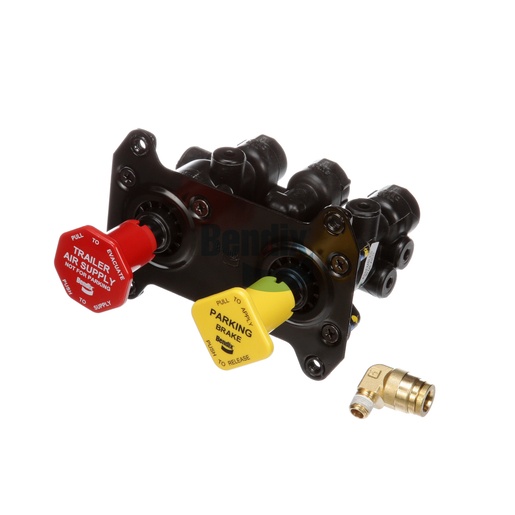

The Bendix Dash Valve is an important component for your air disc brake system, designed to provide reliable control and operation. This valve is engineered to manage pressures effectively, ensuring that your braking system functions optimally under varying conditions. With a robust construction, it is built to withstand the rigors of heavy-duty applications, ensuring longevity and reliability. The valve features multiple ports for easy installation and integration with existing systems, allowing for flexibility in various setups. By choosing the Bendix Dash Valve, you are investing in a crucial part that enhances the overall performance of your braking system, ensuring safety and efficiency on the road. Source One Parts Center is the best place to purchase genuine Bendix OEM parts for commercial vehicles, guaranteeing high-quality components tailored to your needs.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-050: Parking Valve - Tractor-Trailer
Delivery 21 Port
1/4-18 NPT
Delivery 22 Port
1/4-18 NPT
Exhaust Port
1/4-18 NPT
Supply 11 Port
1/4-18 NPT
Supply 12 Port
1/4-18 NPT
Mounting
1/4-20 UNC-2B (4x)
Auxiliary Port
1/8-27 NPT
Height
131.6 mm (5.18 in)
Length
136.1 mm (5.36 in)
Maximum Operating Temperature
200 °F (93 °C)
Trailer Override Pressure
25 ± 5 PSI
Tractor Trip Pressure
30 ± 10 PSI
Trailer Trip Pressure
35 ± 10 PSI
Harmonized System (HS) Code
848120
Width
92.0 mm (3.62 in)
Country of Origin
Mexico
Button(s) Included
Yes
Weight
1.5 lb
