$3,499.95
$4,199.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

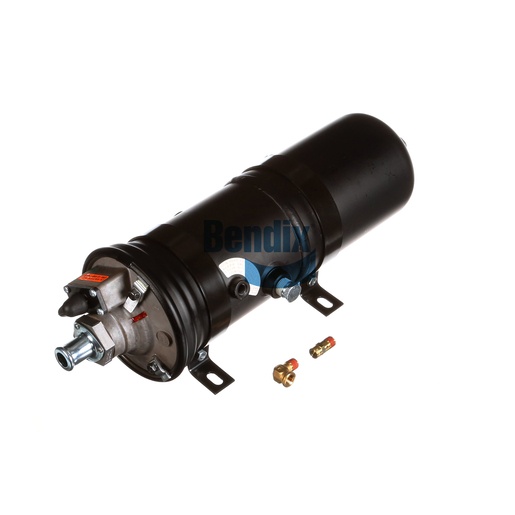

The Bendix Air Dryer is a crucial component designed to enhance the efficiency of your vehicle's air system by removing moisture and contaminants from the compressed air. This unit is engineered to provide superior performance, ensuring that your braking system operates smoothly and effectively under various conditions. With a maximum operating temperature of 150°F and a robust design, it can handle the rigors of commercial use, effectively protecting your vehicle's air components from wear and damage. The air dryer features advanced filtration technology that ensures the air supplied to the braking system is clean and dry, contributing to improved brake performance and longevity. The easy installation process means you can quickly replace or upgrade your air dryer without significant downtime. For those looking to maintain the highest standards in their vehicle's performance, Source One Parts Center is the premier choice for genuine Bendix OEM parts, ensuring that your air systems function at their best.
SPECIFICATIONS
Heater Connector Type
#10-32 UNF-3A THD
Minimum Operating Temperature
-65 °F (-53 °C)
Mounting
.82 IN x .44 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Control (Unloader) Port Angle
0°
Delivery Port
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Extended Purge Port
1/2-14 NPT (Plugged)
Supply Port 2
1/2-14 NPT (Plugged)
Safety Valve Port
1/4-18 NPT
Control (Unloader) Port
1/4-18 NPTF
Heater Rating
120W / 24V
Maximum Operating Temperature
150 °F (66 °C)
Safety Valve Port Angle
165°
Supply Port 1 Angle
180°
Safety Valve Opening Pressure
200 PSI
Mounting Angle
270°
Harmonized System (HS) Code
842139
Country of Origin
United States
Weight
24.74 lb
