This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

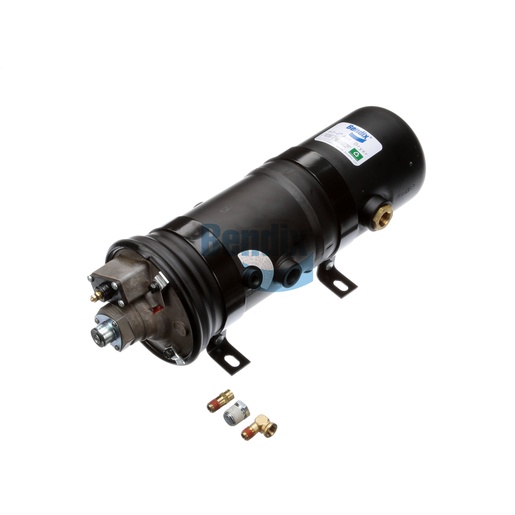

The Bendix air dryer is a crucial component in the air treatment system of commercial vehicles, designed to remove moisture and contaminants from the compressed air. With a net weight of 11.3 kg, this air dryer is engineered for high-performance applications, ensuring that your braking system operates smoothly and reliably. Made in the United States, it meets stringent quality standards to enhance the durability and efficiency of your vehicle. This air dryer features advanced technology that helps prolong the life of air brake components by preventing corrosion and wear caused by moisture. By investing in a Bendix air dryer, you improve the overall performance of your air system, which is essential for safety and reliability on the road. For genuine Bendix OEM parts that ensure optimal performance, turn to Source One Parts Center, where quality meets dependability.
SPECIFICATIONS
Heater Connector Type
#10-32 UNF-3A THD
Minimum Operating Temperature
-65 °F (-53 °C)
Mounting
.82 IN x .44 IN (4x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Supply Port 1 Angle
0°
Delivery Port
1/2-14 NPT
Supply Port 1
1/2-14 NPT
Supply Port 2
1/2-14 NPT
Extended Purge Port
1/2-14 NPT (Plugged)
Safety Valve Port
1/4-18 NPT
Control (Unloader) Port
1/4-18 NPTF
Maximum Operating Temperature
150 °F (66 °C)
Length
178.0 mm (7.01 in)
Width
178.0 mm (7.01 in)
Control (Unloader) Port Angle
180°
Safety Valve Opening Pressure
200 PSI
Safety Valve Port Angle
345°
Height
540.0 mm (21.26 in)
Heater Rating
60W / 12V
Harmonized System (HS) Code
842139
Mounting Angle
90°
Country of Origin
United States
Weight
25 lb
