DESCRIPTION

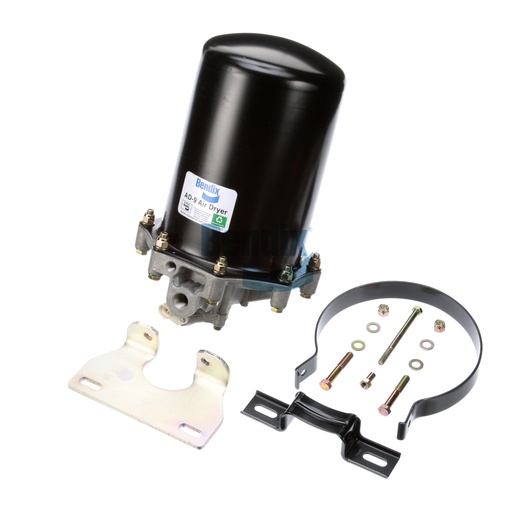

The Bendix Air Dryer is a key component in ensuring the efficiency of your commercial vehicle’s air system. This model is designed to remove moisture and contaminants from the compressed air, preventing potential damage to critical brake components and ensuring optimal performance. With a robust design and a capacity to handle a wide range of operating temperatures, this air dryer operates effectively in both extreme heat and cold environments. Its standard purge volume and advanced filtration system enhance the longevity of your vehicle’s air brake system, ultimately leading to better safety and reliability on the road. Ideal for heavy-duty applications, this air dryer is an essential upgrade for any commercial fleet. When it comes to sourcing genuine Bendix OEM parts, Source One Parts Center is your trusted partner, providing only the highest quality products for your truck.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Length
223.0 mm (8.78 in)
Width
223.0 mm (8.78 in)
Height
364.0 mm (14.33 in)
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open (No Cover)
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Carbon Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
27.76 lb
