DESCRIPTION

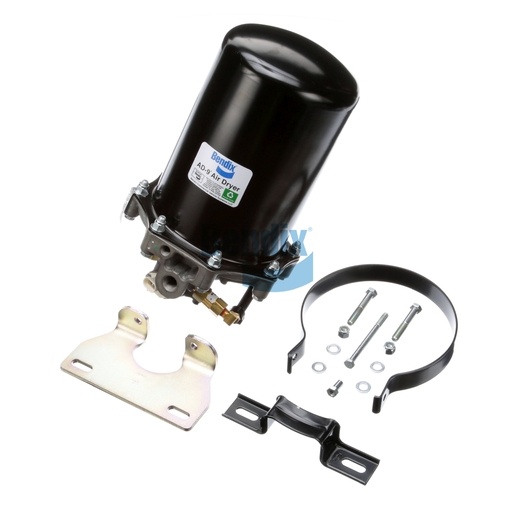

The Bendix Air Dryer is a crucial component for maintaining the efficiency and performance of your commercial vehicle's air system. This advanced air dryer utilizes a standard purge volume and drop-in design to effectively remove moisture and contaminants from the compressed air, ensuring that your braking system operates smoothly and reliably. It features a robust construction with a maximum inlet temperature tolerance of 160°F and a minimum operating temperature down to -40°F, making it suitable for various climate conditions. The integrated heater and thermostat work to prevent freezing, while the soft seat purge valve enhances durability and performance. With its easy installation and maintenance-friendly design, this air dryer is ideal for fleet operators looking to reduce downtime and enhance safety on the road. Source One Parts Center is your best source for genuine Bendix OEM parts, ensuring that you receive top-quality components for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Remote Fill Feature
1/8-27 NPT (Makeup Line Kit)
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Cautionary Note(s)
Drop-In (DI) version - do not replace with standard dryer.
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open (No Cover)
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Carbon Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
30.38 lb
