This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

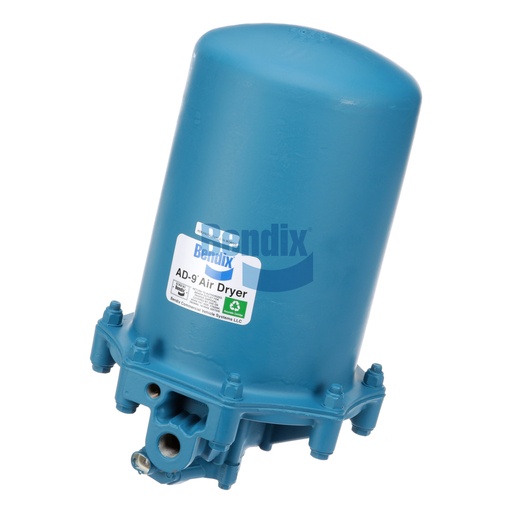

The Air Dryer is an indispensable component in your commercial vehicle's air treatment system, designed to remove moisture and contaminants from the compressed air before it reaches the braking system. This high-performance dryer enhances the reliability of air brakes, preventing freezing and corrosion that can lead to system failures. With a maximum operating temperature of 160°F and a minimum of -40°F, this air dryer is engineered to perform optimally in a wide range of environmental conditions. Its efficient design ensures that your braking system remains responsive and effective, which is critical for safety on the road. Fleet operators trust the Air Dryer to maintain the integrity of their vehicles' braking systems, reducing the need for costly repairs and downtime. When you need genuine Bendix OEM parts, Source One Parts Center is the premier choice, offering authentic solutions that ensure your commercial vehicles operate at peak performance.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Length
223.0 mm (8.78 in)
Height
227.0 mm (8.94 in)
Width
359.0 mm (14.13 in)
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open (No Cover)
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
24.82 lb
