5020297

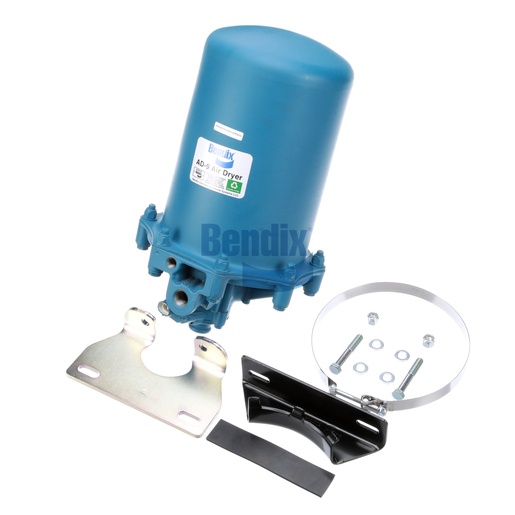

Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is an essential component for maintaining the air quality in your commercial vehicle's braking system. Designed as a stand-alone unit, this air dryer effectively removes moisture and contaminants from the compressed air before it reaches the braking system. Featuring a robust construction and a standard purge volume, it ensures optimal performance even in extreme temperatures, with a minimum operating temperature of -40°F. The air dryer's advanced filtration technology helps extend the lifespan of your brakes by preventing rust and corrosion caused by moisture, thus enhancing overall safety on the road. With easy installation and a compact design, this air dryer integrates seamlessly into various truck models. When you choose to purchase genuine Bendix OEM parts from Source One Parts Center, you are guaranteed high-quality products tailored for your commercial vehicle's needs, ensuring durability and reliability for years to come.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Upper Mounting Bracket
.39 IN x 1.15 IN Slot (2x)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Stainless Steel)
Heater Connector Color
White
Cartridge Stabilizer Ring Included
Yes
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
25.04 lb
