$519.95
$623.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

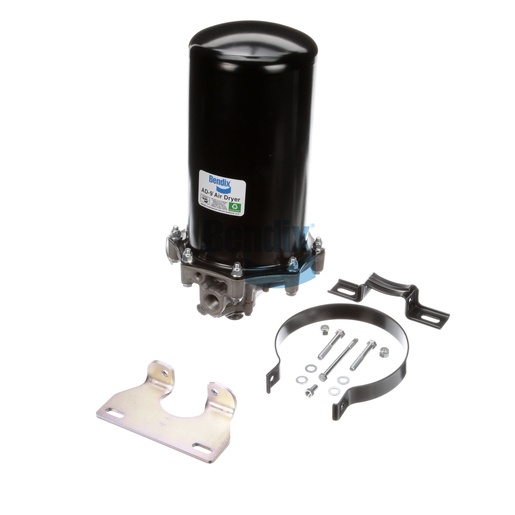

The Bendix Air Dryer is a critical component in maintaining the efficiency and reliability of your vehicle's air braking system. This stand-alone dryer effectively removes moisture and contaminants from the compressed air, preventing potential damage to pneumatic components. With features designed for extreme conditions, it operates efficiently at temperatures ranging from -40°F to 160°F. Its robust construction ensures longevity and reliability, vital for heavy-duty applications. Regular maintenance of the air dryer is essential for optimal braking performance and safety. When you're in need of genuine Bendix OEM parts, turn to Source One Parts Center for the best quality and service for your commercial vehicles.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
13.00 IN
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Heater / Thermostat Rating
24V / 75W
Delivery Port 1
3/4-14 NPT
Supply Port
3/4-14 NPT
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
DLU (Hard Seat)
Purge Volume
Extended
Heater Connector Color
Gray
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Upper Mounting Type
Strap (Carbon Steel)
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
34.9 lb
