DESCRIPTION

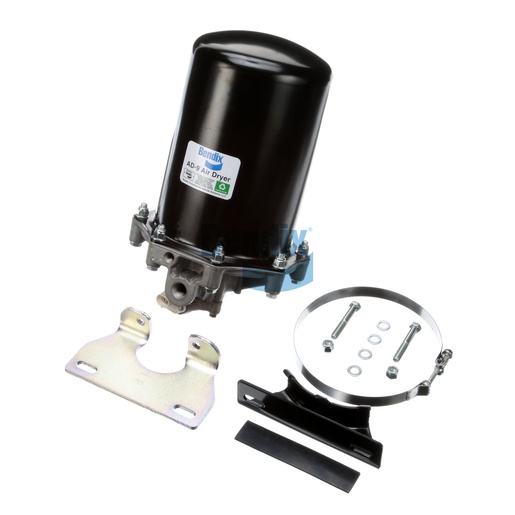

The Air Dryer is crucial for maintaining the integrity of the air brake system by removing moisture and contaminants from the compressed air supply. This component is designed to operate efficiently under various conditions, with a temperature range from -40°F to 160°F, ensuring that your braking system remains free of ice and corrosion. Its robust standalone design includes features like a hard seat purge valve and a governor, allowing for optimal air supply management. The air dryer can be easily installed using standard mounting methods, and it's designed with the driver in mind, providing reliable performance with minimal maintenance required. A well-functioning air dryer is essential for the longevity of your brake components and overall vehicle safety. Source One Parts Center is the ultimate choice for acquiring genuine Bendix OEM parts, ensuring you have the best equipment to keep your commercial vehicles running smoothly.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Upper Mounting Bracket
.39 IN x 1.15 IN Slot (2x)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Length
223.0 mm (8.78 in)
Width
223.0 mm (8.78 in)
Height
364.0 mm (14.33 in)
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open (No Cover)
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Stainless Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
27.93 lb
