DESCRIPTION

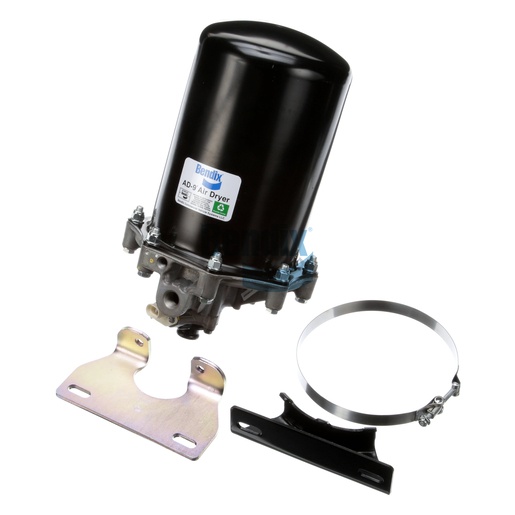

The Air Dryer from Bendix is a key component in maintaining the efficiency and reliability of your vehicle's air brake system. This advanced air dryer is designed to remove moisture and contaminants from the compressed air, preventing ice formation and ensuring optimal brake performance in all conditions. With its robust construction and capability to operate within a range of -40°F to 160°F, this air dryer is built to withstand the demanding environments of commercial vehicles. It features a standard purge volume and a soft seat purge valve that effectively expels collected moisture, significantly reducing the risk of brake failure due to moisture-related issues. Easy to install, this air dryer is a vital part of any air brake system, enhancing the safety and reliability of your vehicle. For those looking to purchase high-quality air treatment components, Source One Parts Center is the premier destination for genuine Bendix OEM parts, ensuring that your commercial vehicles run smoothly and safely.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Upper Mounting Bracket
.39 IN x 1.15 IN Slot (2x)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Stainless Steel)
Heater Connector Color
White
Cartridge Stabilizer Ring Included
Yes
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
25.04 lb
