$859.95
$1,031.94
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

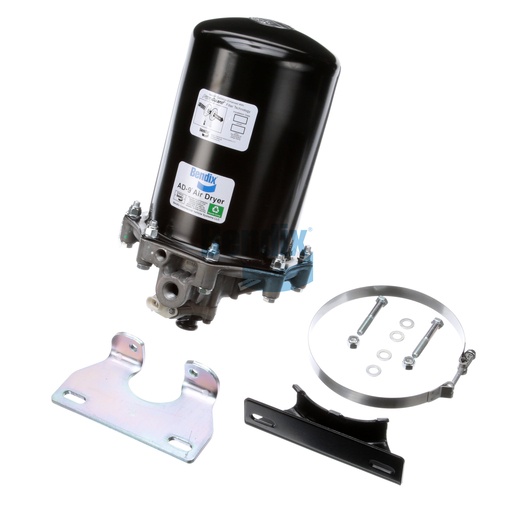

The Bendix air dryer is a crucial component in maintaining the efficiency and reliability of your vehicle's air system. Designed as a stand-alone unit, this air dryer effectively removes moisture and contaminants from the compressed air, ensuring optimal performance of the brake system and other pneumatic components. With a maximum inlet temperature of 160 °F and a minimum operating temperature of -40 °F, it is built to perform under a wide range of conditions, providing peace of mind for operators in various climates. The PuraGuard cartridge type enhances filtration, while the heater and thermostat rating ensure effective operation during colder months. This unit also features a compact design with easy installation, making it a practical choice for fleet maintenance. For those in search of top-tier OEM parts, Source One Parts Center is your go-to source for genuine Bendix components, providing unmatched quality and support.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Upper Mounting Bracket
.39 IN x 1.15 IN Slot (2x)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Cartridge Type
PuraGuard (Coalescing)
Purge Valve Type
Soft Seat
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Stainless Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
29 lb
