DESCRIPTION

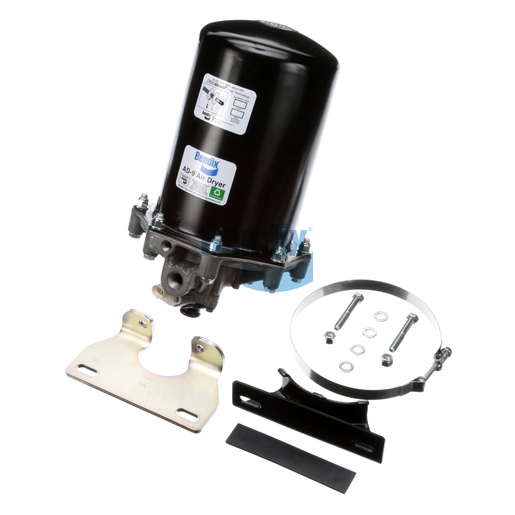

The Air Dryer by Bendix is a pivotal component in air treatment systems for commercial trucks, specifically designed to enhance the performance and reliability of your vehicle's air brake system. This stand-alone air dryer features a PuraGuard coalescing cartridge that effectively removes moisture and contaminants from the air supply, preventing potential damage to brake components. It is engineered to operate efficiently in extreme temperatures, with a minimum operating temperature of -40°F and a maximum inlet temperature of 160°F. The air dryer includes multiple ports for flexible installation options, making it adaptable to various truck configurations. Weighing 28.65 pounds, it is built with a stainless steel mounting strap for added durability. For genuine Bendix OEM parts, Source One Parts Center is your trusted source, ensuring you receive top-quality components for your commercial vehicle.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Upper Mounting Bracket
.39 IN x 1.15 IN Slot (2x)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Stainless Steel)
Heater Connector Color
White
Cartridge Stabilizer Ring Included
Yes
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
28.65 lb
