$759.95
$911.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

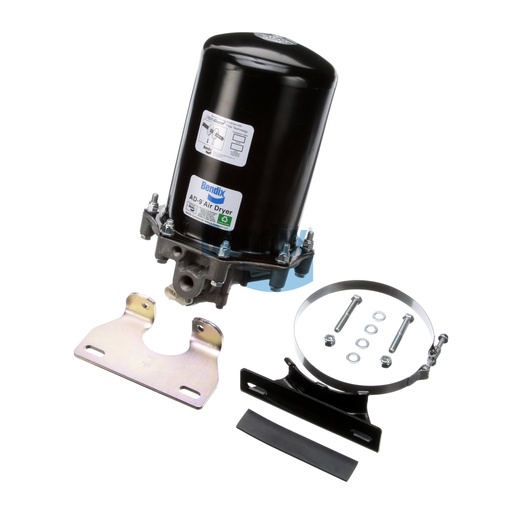

The Bendix Air Dryer is an essential component for any commercial vehicle's air system, designed to effectively remove moisture and contaminants from the compressed air supply. This high-performance air dryer employs advanced PuraGuard coalescing cartridge technology, which ensures that the air supplied to critical components is clean and dry, enhancing the overall efficiency and longevity of the braking system. With a minimum operating temperature of -40°F and a safety valve opening pressure of 200 PSI, this air dryer is built to withstand the harshest conditions encountered on the road. Its robust design features a 1/2-14 NPT supply port and a 1/4-18 NPT control port, making installation straightforward and compatible with a variety of commercial truck configurations. Additionally, the air dryer offers a purge volume that adheres to standard specifications, ensuring optimal performance without unnecessary waste. When it’s time to replace your air dryer, choose Source One Parts Center for genuine Bendix OEM parts, where quality and reliability are guaranteed.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Upper Mounting Bracket
.39 IN x 1.15 IN Slot (2x)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Purge Exhaust Port
Open
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Volume
Standard
Upper Mounting Type
Strap (Stainless Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
28.49 lb
