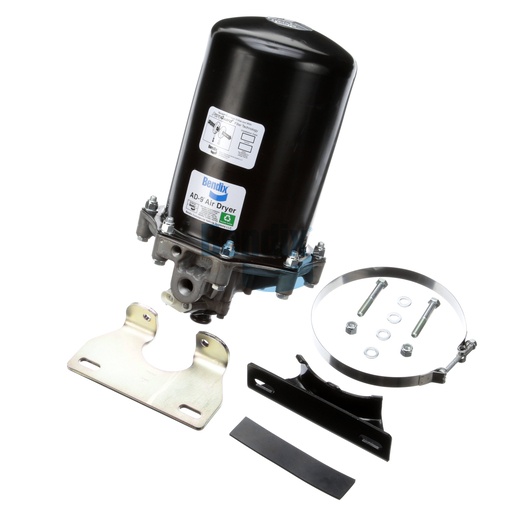

K046211
Air Dryer
Bendix
UNAVAILABLE
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION
The Bendix Air Dryer is essential for maintaining optimal air quality in your vehicle's braking system, preventing moisture and contaminants that can degrade performance. Designed for heavy-duty applications, this air dryer features a robust construction and reliable functionality, ensuring that your braking system operates efficiently. With a gross weight of 12.9 kg (28.5 lb), it is built to withstand the demands of commercial usage while providing essential air treatment. The dryer includes features like a purge valve for easy maintenance, making it a practical choice for fleet managers. When you need genuine Bendix parts, Source One Parts Center is your best source for quality and service.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Upper Mounting Bracket
.39 IN x 1.15 IN Slot (2x)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
VMRS
013-010-252: Air Dryer W/Drain Valves
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Clearance to Remove Cartridge
11.00 IN
Heater / Thermostat Rating
12V / 75W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Cartridge Thread
5/8-11 UNC-2A
Harmonized System (HS) Code
842139
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Cartridge Stabilizer Ring Included
No
Governor Included
No
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
Standard
Upper Mounting Type
Strap (Stainless Steel)
Heater Connector Color
White
Body Mounting
Ø .425 Hole with 3/8-24 UNF-2A Bolted Joint (8x)
Weight
28.5 lb
