$629.95
$755.94
FINAL SALE. No returns or exchanges.
This truck part is made by Bendix. We guarantee that all of our parts are from the OEM (original equipment manufacturer), ensuring a proper fit and quality manufacturing.
We honor the warranty provided by the original equipment manufacturer.
DESCRIPTION

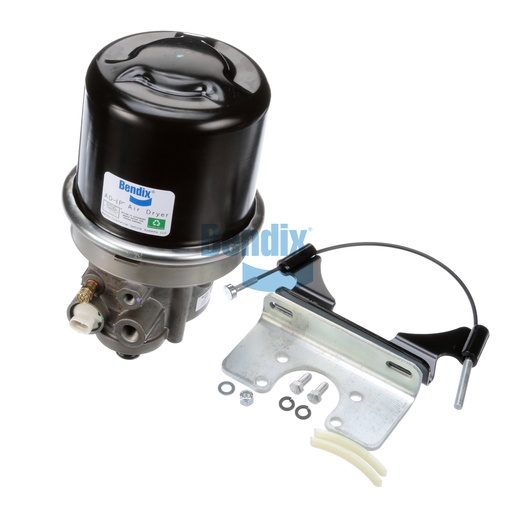

The Bendix Air Dryer is a vital component for maintaining optimal air quality in your vehicle’s braking system. Designed with advanced filtration technology, this air dryer effectively removes moisture and contaminants from compressed air, ensuring reliable brake performance and longevity of the system. With a robust design that withstands harsh conditions, it integrates easily into your air treatment setup. The air dryer’s lightweight construction, weighing 28.0 lb, allows for straightforward installation, minimizing downtime during maintenance. By investing in this high-quality air dryer, you can significantly enhance the safety and efficiency of your braking system. For those seeking authentic Bendix OEM parts, Source One Parts Center is your go-to destination, providing assurance of quality and service excellence.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Heater / Thermostat Rating
12V / 90W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Body Mounting
3/8-16 UNC-2B (4x)
Harmonized System (HS) Code
842139
Upper Mounting Type
Cable
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Air Dryer Type
Stand-Alone
Cartridge Type
Standard
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Weight
28 lb
