DESCRIPTION

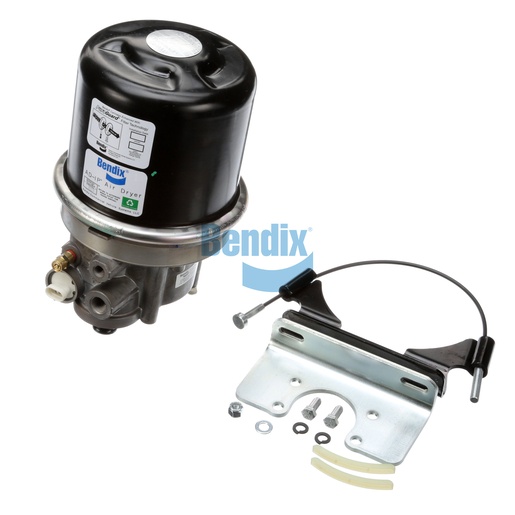

The Air Dryer is a crucial component in maintaining the efficiency and reliability of your truck’s air brake system. Designed to remove moisture and contaminants from the air supply, it helps prevent corrosion and ensures optimal performance of pneumatic brake components. This unit features a stand-alone design with a PuraGuard coalescing cartridge for superior filtration efficiency, ensuring that your air system operates smoothly under various conditions. With a robust construction designed to withstand harsh environments, this air dryer guarantees durability and longevity. The technical attributes include a maximum inlet temperature of 160°F and operating temperatures down to -40°F, making it suitable for a wide range of applications. For those who prioritize quality and dependability, Source One Parts Center is the best place to purchase genuine Bendix OEM parts to keep your commercial vehicles in prime working condition.
SPECIFICATIONS
Minimum Operating Temperature
-40 °F (-40 °C)
Lower Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Upper Mounting Bracket
.41 IN x 1.15 IN Slot (2x)
Clearance to Remove Cartridge
.50 IN
VMRS
013-010-252: Air Dryer W/Drain Valves
Cartridge Thread
1 1/4-7 UNC-2B
Delivery Port 1
1/2-14 NPT
Supply Port
1/2-14 NPT
Control Port
1/4-18 NPT
Extended Purge Port
1/8-27 NPT (Plugged)
Heater / Thermostat Rating
12V / 90W
Maximum Inlet Temperature
160 °F (71 °C)
Safety Valve Opening Pressure
200 PSI
Length
214.0 mm (8.43 in)
Width
224.0 mm (8.82 in)
Body Mounting
3/8-16 UNC-2B (4x)
Height
338.0 mm (13.31 in)
Harmonized System (HS) Code
842139
Upper Mounting Type
Cable
Cautionary Note(s)
Do not replace PG cartridge with Standard/GC cartridge.
Purge Valve Type
Hard Seat
Lower Mounting Bracket Angle (CCW from SUP)
Loose in Box
Upper Mounting Bracket Height (from Lower Mounting Bracket)
Loose in Box
Heater Connector Type
Metri-Pack 280 Series 2-Way Sealed Connector (Male)
Country of Origin
Mexico
Governor Included
No
Cartridge Type
PuraGuard (Coalescing)
Air Dryer Type
Stand-Alone
Purge Exhaust Port
Standard
Purge Volume
Standard
Heater Connector Color
White
Weight
27.77 lb
